Mini Essential Oil Alcohol Butane Extraction Machine Small Closed Loop Blast Bho Extractor

Basic Info.

Model NO.	DW50
Centrifuge Type	No
Distillation Equipment Type	Steam Distillation Equipment
Condition	New
Power Kw (Auxiliary)	1.4
Power Kw (Main)	1.8
Cooling Mode	Advantage
Product Model	Dw 50
Advantage	High Productivity
Heating Method	Electric Heating Plate
Cooling Method	Water Cooling
Voltage V	220
Exposure Rate L/H	2.5
Transport Package	Carton, Wooden or Customized Package
Trademark	Lanphan
Origin	China (Mainland)
Production Capacity	1000

Product Description

Product Description

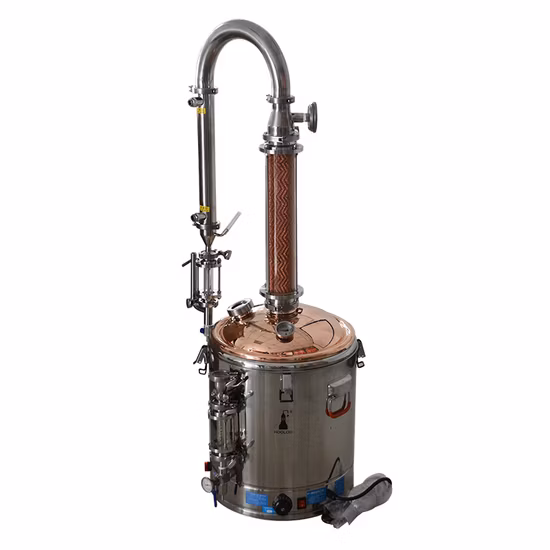

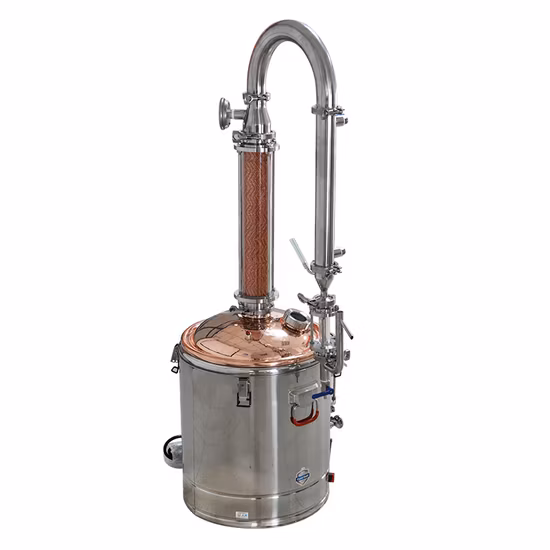

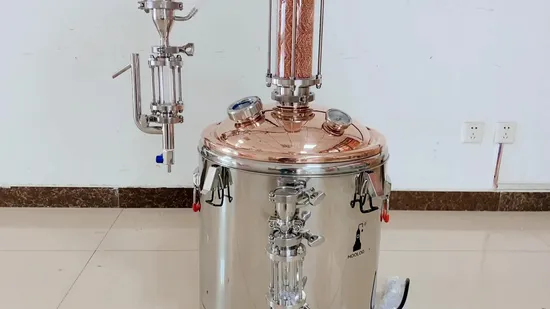

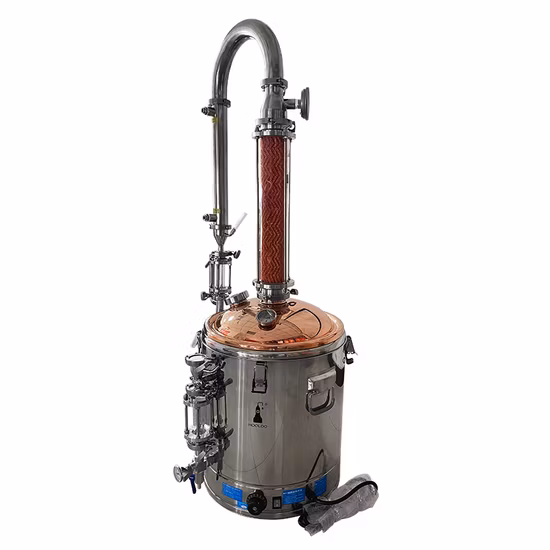

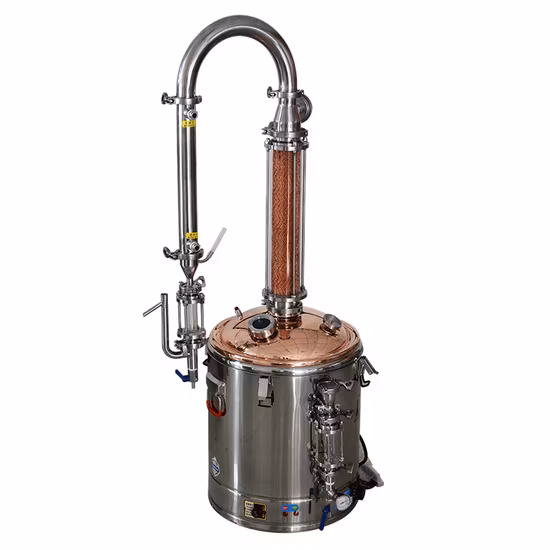

Made of stainless steel and red copper, the essential oil extractor extracts essential oil and hydrosol by steam distillation. With a modular design, it is easy to disassemble and clean without remaining impurities and bacteria easily. It is safe and healthy as well. The pure copper is used in the rectifying tower, which serves as a catalyst to promote fragrance more completely. The concentrations of active substances extracted by it is triple that of ordinary equipment. The pure copper can also replace sulfide in the fragrance, which can not only purify the hydrosol, but ensure a more sable flow rate of producing hydrosol, basically without interruption and close supervision.

Model		Capacity (L)	Cooling Mode	Heating Mode	Rate of Producing Hydrosol (L/h)	Voltage (V)	Power (KW) (Main)	Power (KW) (Auxiliary)
Commercial CT	CT90	90	Water Cooling	Electrical Bar (Electric Cabinet)	5 ~ 8	220/380	6	-
	CT120	120	Water Cooling	Electrical Bar (Electric Cabinet)	5 ~ 8	220/380	6	-
DW	DW25	25	Water Cooling	Electric Heating Plate	2	220	1.6	1.2
	DW50	50	Water Cooling	Electric Heating Plate	2.5	220	1.8	1.4
Household Crystal Tower Type CT	20	20	Water Cooling	Electric Heating Plate	2	220	1.8	-
	30	30	Water Cooling	Electric Heating Plate	2	220	1.8	-
	65	65	Water Cooling	Electric Heating Plate	3	220	2.8	-
Gourd Type	15	15	Water Cooling	Electric Pottery Stove / Gas Stove	It depends on the heating source power.	It depends on the heating source power.	Heating Power Source	-

Working Principle

Steam Distillation Method: It is one of the most widely used methods because of simple device, easy operation and low cost. However, the relatively high operation temperature will cause the decomposition and hydrolysis of heat sensitive material in essential oil, and it's required to remove moisture in the the extracted essential oil firstly. It's complicated.
